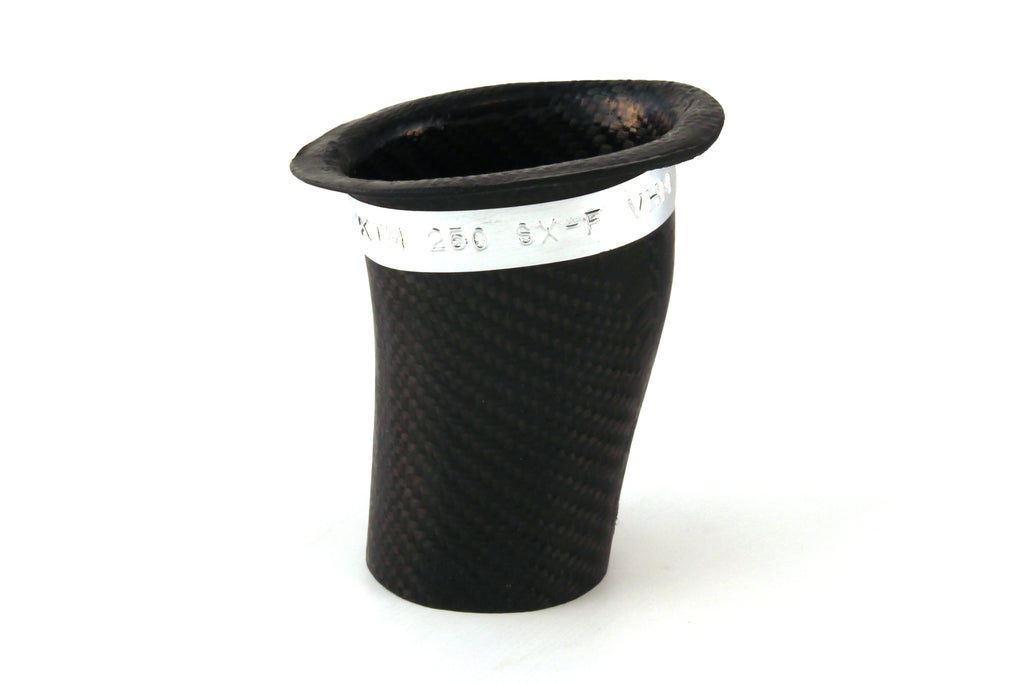

VHM carbon air intake KTM 250SX-F / 350SX-F / Husqvarna FC250 / FC350 2019 - 2022 / GasGas MC250F 2021 - 2023 AI060619 ^Sale

Made in the Netherlands

Developed for an optimum air flow and made of real carbon. When the engine is running and temperatures rise, the airbox rubber usually deforms. This is due to the high temperatures as it get's more soft, which leads to an even less optimal air flow. Our carbon intake prevents the airbox from deforming and improves greatly on bottom power.

To use this air intake, you need a powerflow kit from Twin Air (part number 154222C).

Mounting the intake
1. Loosen hose clamp from airbox rubber
2. Disconnect rollover temperature sensor
3. Remove screws from temperature sensor
4. Take the air filter cover off
5. Take air filter with air filter support off
6. Hold the intake in one hand, with the aluminium label facing towards you and the temp. hole downwards
7. Mount temperature sensor again
8. Don’t forget: fasten hose clamp from airbox and connect rollover temperature sensor again
9. Mount the air filter with air filter support (must use Twin Air powerflow kit 154222C)
10. Mount the air filter cover again

• Real carbon
• More torque and improved bottom power
• Optimum air flow
• Easy to mount
• Prevents airbox rubber from deforming at high temperatures
• Including hole for temperature sensor
• Ensures that dirt/mud is evenly spread over whole airbox
